Custom Tools
Example Projects

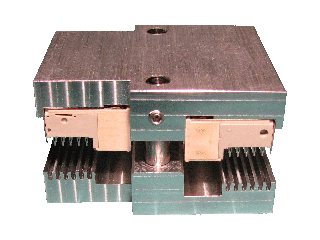

| Compliant Pin Insertion Tools
|
|
|
For those who occasionally need to insert pressfit components and don't want to make an extra trip to the Contract Manufacturer (or pay the tooling charge), a custom insertion tool is a handy tool to have in the lab. An insertion tool for any compliant pin component can be made and just requires a standard bench vise to apply the force.
cPCI, Z-PACK, VHDM, and others
|
|

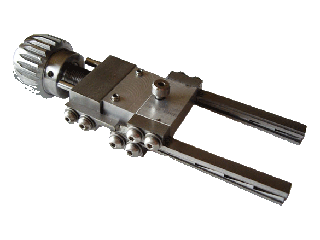

| BGA Socket Extraction Tool
|
|
|
To enhance functionality of a complex design, a BGA component was removed and it's site was used to introduce a daughter or "interposer" card through the use of a BGA socket. Due to the size and shape of the daughter board and the surrounding components, design of a custom extraction tool was required to remove the interposer.
|
|
| Machining Tools
|
|
| |
Many of the tools in the shop where made in the shop.
...enough said.
|
|
|
|
