PCB Design
Capabilities
Recent design experience includes the following:
- High-speed digital designs up to 10GHz
- 10/100 Ethernet, GigE, 10GigE, XAUI, PCI-X, PCIe, RapidIO
- Memory - DDR, DDR2, DDR3, QDR, DIMM, RDIMM, FB-DIMM, SO-DIMM
- Extremely dense, high pincount, small form factor PCB's
- HDI blind/burried/micro vias
- 24 layers, dual thickness, exotic dielectrics
- Multi-chip modules, flip-chip and chip on board
- Linecards and Backplanes
- all flavours of Chip Scale Packaging
Example Projects

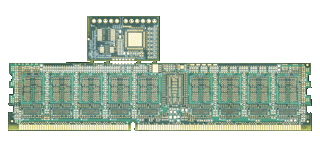

| Verification DIMM
|
|
| | Size:
|
| 5.25"x2.00"
| | Thickness:
|
| 0.050"
| | Layers:
|
| 10
| | Nets:
|
| 3956
| | Components:
|
| 789
| | Lands:
|
| 4093
| | Vias:
|
| 2645
|
| |
18x4Gb 1333MHz DualDie DDR3
0.65mm pitch Register/Clock ASIC
0.50mm pitch Interface IC ASIC x9
Detachable debug circuit
|
|

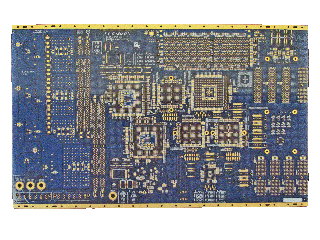

| 10GbE Linecard
|
|
| | Size:
|
| 5.25"x6.30"
| | Thickness:
|
| 0.093"
| | Layers:
|
| 14
| | Nets:
|
| 3949
| | Components:
|
| 1258
| | Lands:
|
| 4284
| | Vias:
|
| 3058
|
| |
10Gb/s Serial Data Transmission, dual XFP tranceivers, XAUI mux/demux
|
|

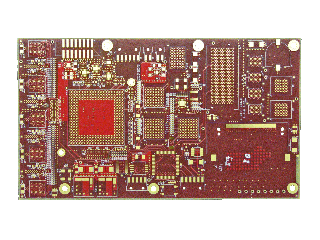

| CPU Mezzanine Card
|
|
| | Size:
|
| 4.0"x7.0"
| | Thickness:
|
| 0.063"
| | Layers:
|
| 12
| | Nets:
|
| 4826
| | Components:
|
| 988
| | Lands:
|
| 5209
| | Vias:
|
| 3263
|
| |
FreeScale CPU, DDR2, GiGE, XAUI, CompactFlash, BGA Mezzanine connector.
|
|

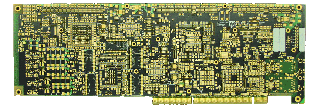

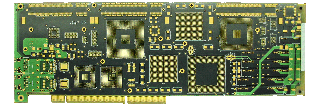

| PCI-X x64 Card
|
|
| | Size:
|
| 4.2"x12.28"
| | Thickness:
|
| 0.093",0.062" (dual)
| | Layers:
|
| 22
| | Nets:
|
| 14336
| | Components:
|
| 3814
| | Lands:
|
| 15027
| | Vias:
|
| 21068
| |
|
| thru/blind/micro
|
| |
0.093" PCI card that mates with a 0.062" edge connector. Other challenges: component density, thermal management, and power distribution
|
|
| Multi-Chip Module (MCM)
|
|
| | Size:
|
| 31mm x 31mm
| | Thickness:
|
| 1mm
| | Layers:
|
| 8
| | Nets:
|
| 1032
| | Components:
|
| 491
| | Lands:
|
| 1047
| | Vias:
|
| 1132
| |
|
| thru/blind/micro
|
|
|
| cPCI Active Backplane
|
|
| | Size:
|
| 16.75" x 10.32"
| | Thickness:
|
| 0.93"
| | Layers:
|
| 20
| | Nets:
|
| 11851
| | Components:
|
| 491
| | Lands:
|
| 12978
| | Vias:
|
| 7505
|
| |
One of five PCB's designed for a custom ASIC evaluation platform based on the CompactPCE form factor. Project also included thermal analysis, metalwork, and industrial design.
|
|
|
|
